IPC-150J-2R

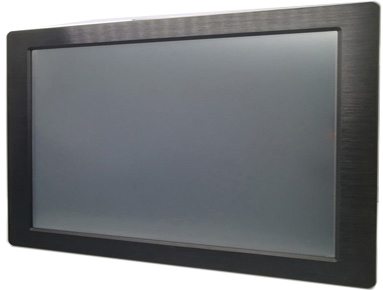

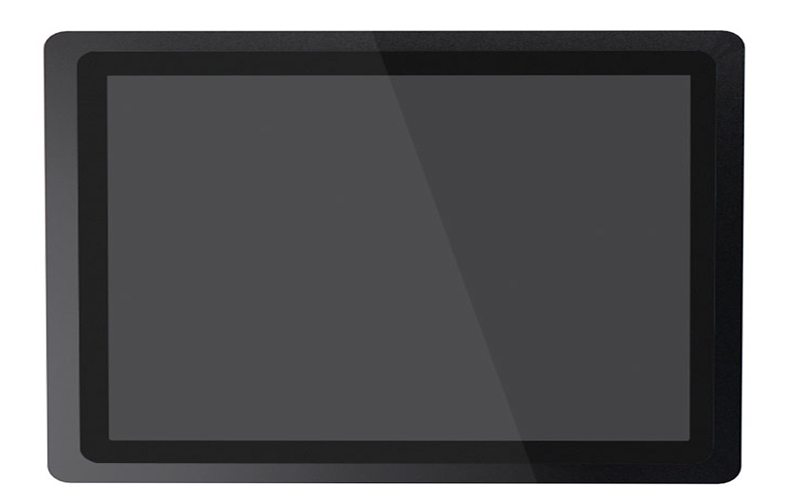

15" J1900 LED Industrial Panel PC
Features:
  • 15" LED Panel support 1024 × 768pixels
  • Intel Celeron J1900(Four-core 2.0GHz processor)CPU with 1333 MHz FSB
  • 1x SODIMM DDR3 1600/1333 SDRAM up to 8 GB
  •  Front aluminum bezel with IP65 compliant
  • DC12V input ( option Wide range DC 8-30V input)

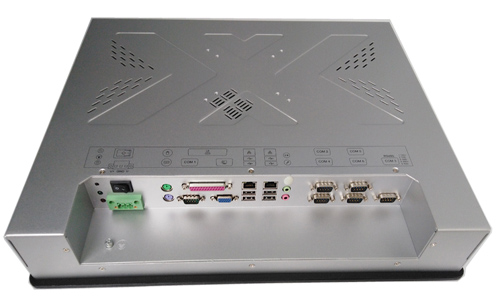

  • 6COM (1xRS485), 1xLPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO、MIC
Quick Download

Specifications

Processor: Intel Celeron J1900 (Four-core 2.0G) Processor

Chipset: Intel Bay trail SOC

Memory: 1x DDR3 memory expansion slot, the largest support for 8GB

Hard Disk: 1 x 500GB

System: Win7, Win8, win10,Linux

Graphic: Integrated Intel HD graphics chip, support independent dual display,

LAN: 2 x GbE LAN RJ-45

Audio: 1 x Audio line out and MIC input

USB interface: 4 xUSB 2.0 port

Serial port: 1x RS485 DB-9,5 x RS232 DB-9

Touch Screen: USB Resistive Touch

Dimension WxHxD: 406 x 312 x 75 mm

Net weight (Kgs): 6.5KG

Power supply: DC 12V 5A power adapter, 3Pin terminal connector

Environment: Operating temperature (°C) 0~50, Storage temperature (°C) -20~60,

Certification: CE / FCC class A

Various applications
