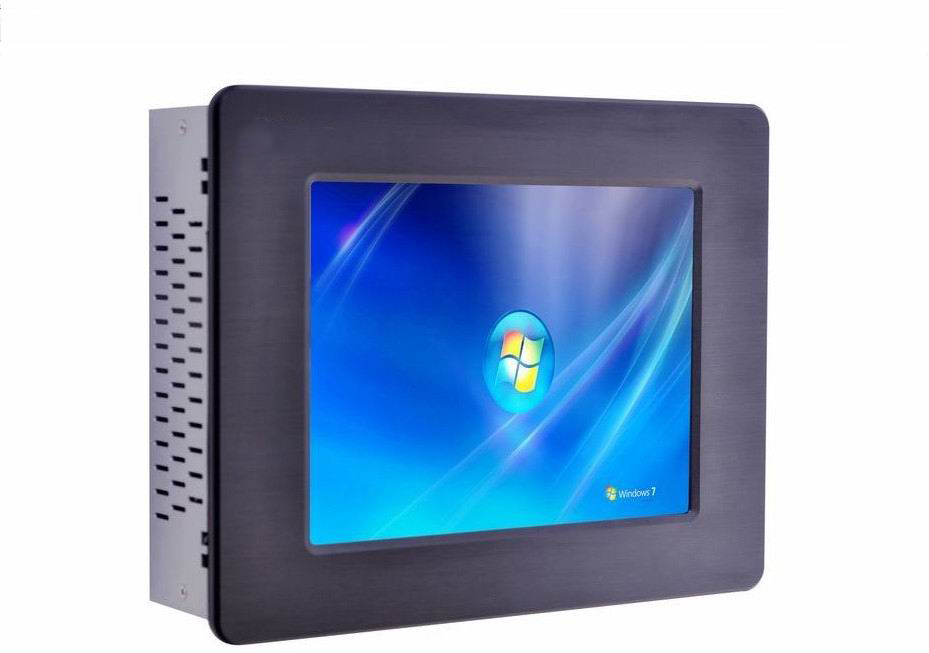

8.4" J1900 LED Industrial Panel PC
  • 8.4" LED Panel support 800 × 600pixels
  • Intel Celeron J1900 ( Four-core 2.0GHz processor ) CPU with 1333 MHz FSB
  • 1x SODIMM DDR3 1600/1333 SDRAM up to 8 GB
  •  Front aluminum bezel with IP65 compliant
  •  DC12V input ( option Wide range DC 8-30V input)

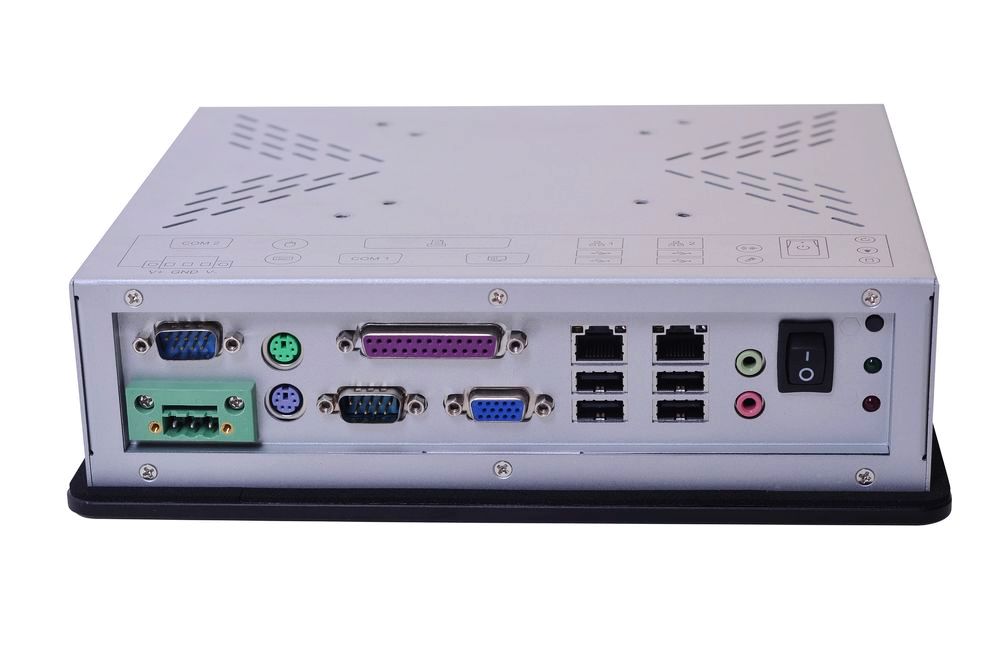

  • 2COM (1xRS485), 1xLPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO、MIC
Quick Download


Processor: Intel Celeron J1900 (Four-core 2.0G) Processor

Chipset: Intel Bay trail SOC

Memory: 1x DDR3 memory expansion slot, the largest support for 8GB

Hard Disk: 1 x 500GB

System: Win7, Win8, win10,Linux

Graphic: Integrated Intel HD graphics chip, support independent dual display,

LAN: 2 x GbE LAN RJ-45

Audio: 1 x Audio line out and MIC input

USB interface: 4 xUSB 2.0 port

Serial port: 1x RS485 DB-9,1 x RS232 DB-9

Touch Screen: USB Resistive Touch

Dimension WxHxD: 248.8 x 196.8 x 70 mm

Net weight (Kgs): 3.5KG

Power supply: DC 12V 5A power adapter, 3Pin terminal connector

Environment: Operating temperature (°C) 0~50, Storage temperature (°C) -20~60,

Certification: CE / FCC class A

Various applications
