IPC-I5615M-2R

15" Intel Core i7/i5/i3 LED Industrial Panel PC
Features:
  • 15" LED Panel support 1024 × 768pixel
  • Intel Core i7/i5/i3 Sandy bridge Processor
  • System memory 1 x DDR3 DIMM slot ,up to 8G 1600/1333MHz
  • Front aluminum bezel with IP65 compliant

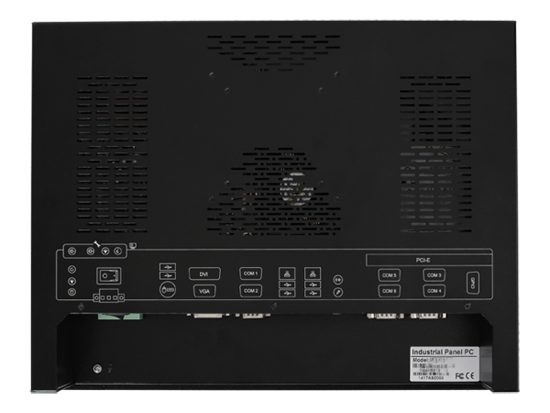

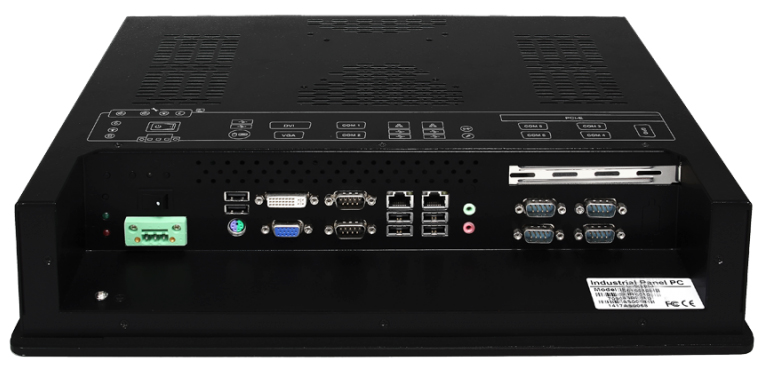

  • 6COM(1x RS485), 1xDVI,1x PS/2,1xVGA, 6xUSB, 2xLAN, 1x AUDIO,MIC
  • Wide range DC 8-30V input
Quick Download

Specifications

Processor: Intel Core i7/i5/i3 Sandy bridge Processor

LCD Size: 15" LED Panel support 1024 × 768pixel

Luminance (cd/m2): 450,  Contrast: 700:1,

Chipset: Intel Bay trail SOC

Memory: 1x DDR3 memory expansion slot, the largest support for 8GB

Hard Disk: 1 x 500GB

System: Win7, Win8, win10,Linux

Graphic: Integrated Intel HD graphics chip, support independent dual display,

LAN: 2 x GbE LAN RJ-45

Audio: 1 x Audio line out and MIC input

USB interface: 6 xUSB 2.0 port

Serial port: 1x RS485 DB-9,5 x RS232 DB-9

Touch Screen: USB Resistive Touch

Dimension WxHxD: 406 x 312 x 90 mm

Net weight (Kgs): 8.5KG

Power supply: DC 8~30V, 12V/10A power adapter, 3Pin terminal connector

Environment: Operating temperature (°C) 0~50,  Storage temperature (°C) -20~60,

Certification: CE / FCC class A
