FIPC-170J-2R

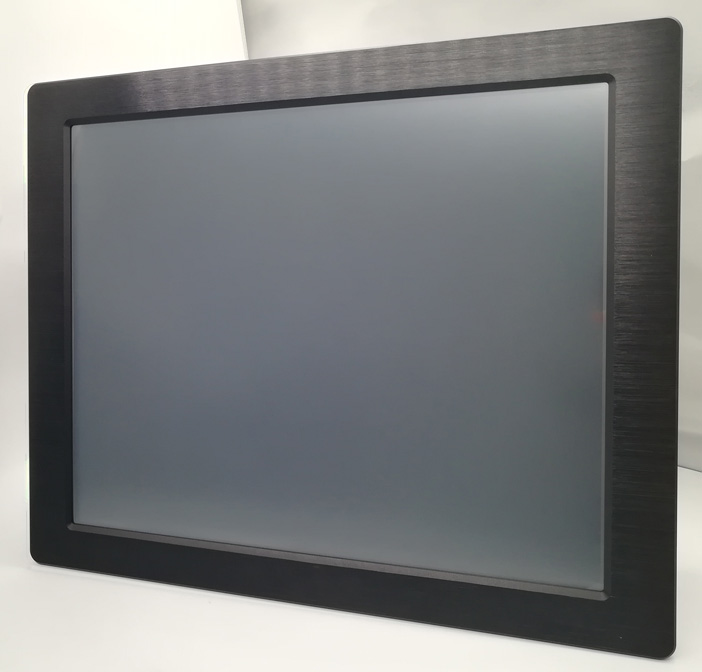

17" LED Fanless J1900 Industrial Panel PC
Features:
  • 17"  LED Panel support 1280 x 1024
  • Intel Celeron J1900 ( 2.0GHz processor) CPU with 1333 MHz FSB
  • 1x SODIMM DDR3 1600/1333 SDRAM up to 8 GB
  • Front aluminum bezel with IP65 compliant
  • DC12V input ( option Wide range DC 8-30V input)

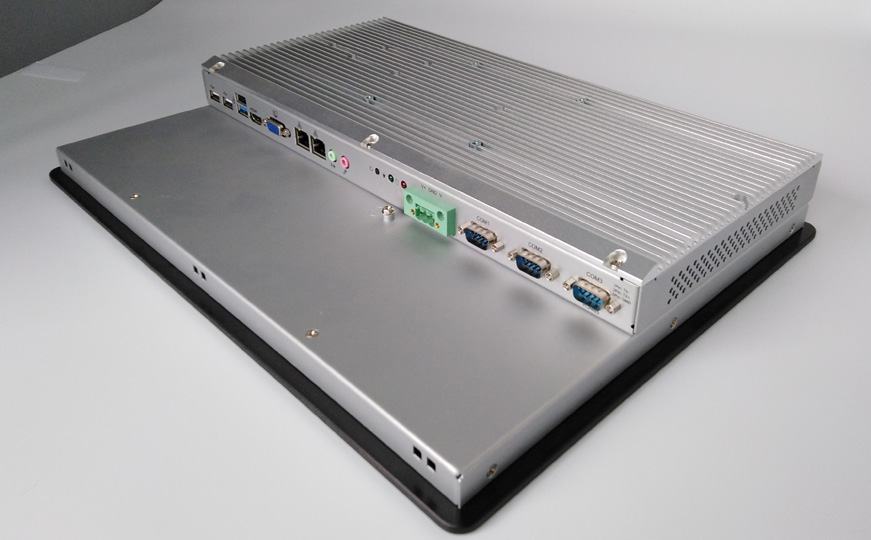

  • 3xCOM,1xHDMI,1xVGA, 4xUSB, 2xLAN, 1x AUDIO, MIC
  • Quick Download

    Specifications

    Processor: Intel Celeron J1900 (Four-core 2.0G) Processor

    Chipset: Intel Bay trail SOC

    Memory: 1x DDR3 memory expansion slot, the largest support for 8GB

    Hard Disk: 1 x 500GB

    System: Win7, Win8, win10,Linux

    Graphic: Integrated Intel HD graphics chip, support independent dual display,

    LAN: 2 x GbE LAN RJ-45

     Audio: 1 x Audio line out and MIC input

    USB interface: 4 xUSB 2.0 port

    Serial port: 1x RS485 DB-9,2 x RS232 DB-9

    Touch Screen: USB Resistive Touch

    Dimension WxHxD: 432 x 346 x 60 mm

    Net weight (Kgs): 7.0KG

    Power supply: DC 12V 5A power adapter, 3Pin terminal connector

    Environment: Operating temperature (°C) 0~50, Storage temperature (°C) -20~60,

    Certification: CE / FCC class A

    Various applications
