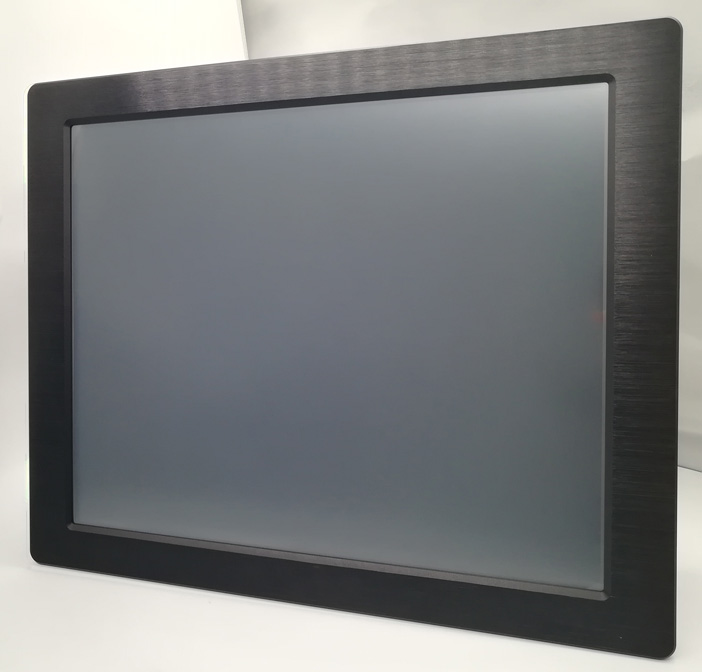

19" LED Fanless J1900 Industrial Panel PC
  • 19" LED Panel support 1280×1024pixels
  • Intel Celeron J1900 ( Four-core 2.0GHz processor ) CPU with 1333 MHz FSB
  • 1x SODIMM DDR3 1600/1333 SDRAM up to 8 GB
  •  Front aluminum bezel with IP65 compliant
  •  DC12V input ( option Wide range DC 8-30V input)
Quick Download


Processor: Intel Celeron J1900 (Four-core 2.0G) Processor

Chipset: Intel Bay trail SOC

Memory: 1x DDR3 memory expansion slot, the largest support for 8GB

Hard Disk: 1 x 500GB

System: Win7, Win8, win10,Linux

Graphic: Integrated Intel HD graphics chip, support independent dual display,

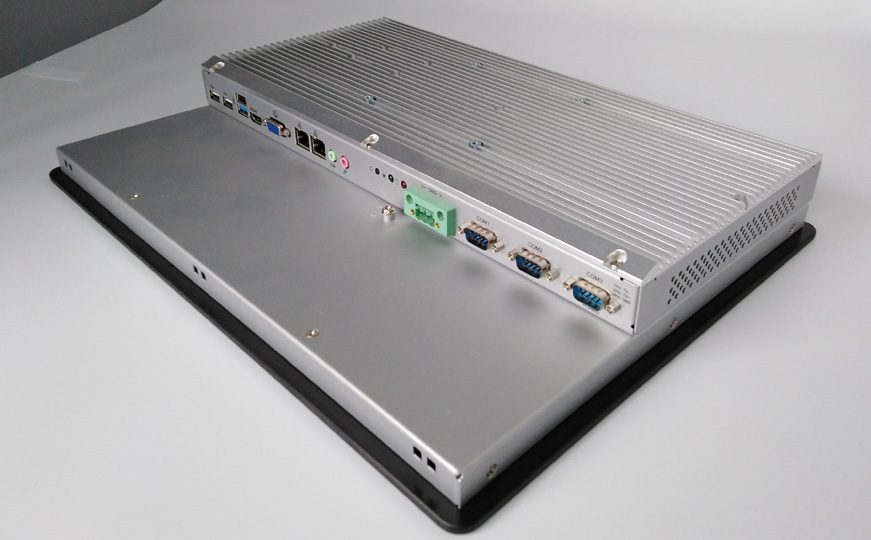

LAN: 2 x GbE LAN RJ-45

  Audio: 1 x Audio line out and MIC input

USB interface: 4 xUSB 2.0 port

Serial port: 1x RS485 DB-9,2 x RS232 DB-9

Touch Screen: USB Resistive Touch

Dimension WxHxD: 456 x 371 x 60 mm

Net weight (Kgs): 7.5KG

Power supply: DC 12V 5A power adapter, 3Pin terminal connector

Environment: Operating temperature (°C) 0~50, Storage temperature (°C) -20~60,

Certification: CE / FCC class A

Various applications
