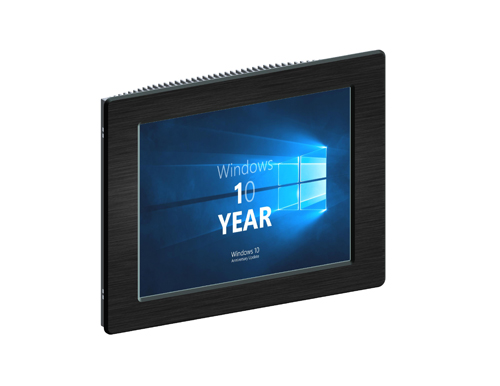

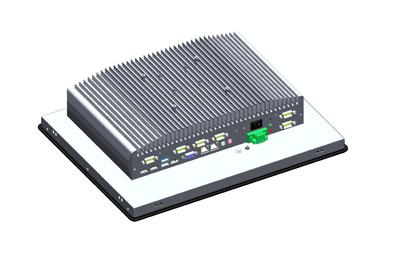

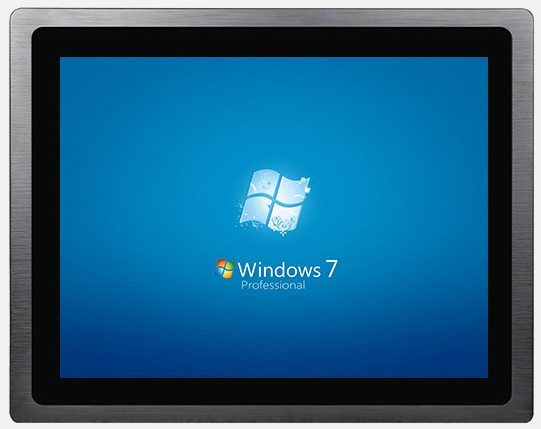

FIPC-150I-2R

15" LED Fanless Intel 6th,7th,8th,i3,i5,i7 Industrial Panel PC
Features:
  • 15"  LED Panel support 1024 x 768
  • Intel 6th, 7th, 8th i3, i5, i7 Processor
  • 2x SODIMM DDR4 2400/2166 SDRAM up to 32 GB
  • Front aluminum bezel with IP65 compliant
  • DC12V input ( option Wide range DC 8-30V input)

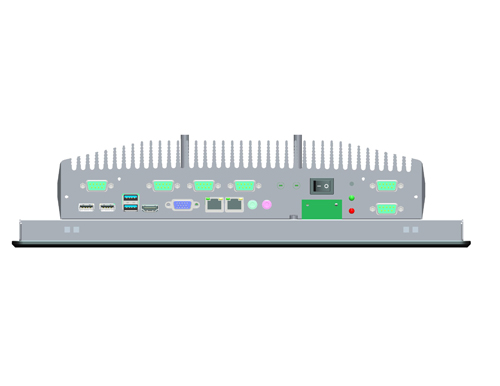

  • 6COM,1xHDMI,1xVGA, 4xUSB, 2xLAN, 1x AUDIO, MIC
Quick Download

Specifications

Processor: Intel® 6th,7th,8th,9th,i3.i5,i7 Core Processor

LCD Size: 15" LED Panel support 1024 × 768pixel

Luminance (cd/m2): 450, Contrast: 700:1,

Chipset: Intel ® H310

Memory: 2 x DDR2 memory expansion slot, the largest support for 32GB

Hard Disk: 1 x 500GB

System: Win7, Win8, win10, Linux

Graphic: Integrated Intel HD graphics chip, support independent dual display,

LAN: 2 x GbE LAN RJ-45

Audio: 1 x Audio line out and MIC input

USB interface: 2 x USB 2.0 port,2 x USB 3.0 port

Serial port: 1x RS485 DB-9, 5 x RS232 DB-9

Touch Screen: USB Resistive Touch

Dimension WxHxD: 406 x 312 x 95 mm

Net weight (Kgs): 8.5KG

Power supply: DC 8~30V, 12V/10A power adapter, 3Pin terminal connector

Environment: Operating temperature (°C) 0~50, Storage temperature (°C) -20~60,

Certification: CE / FCC class A

Various applications
