FIPC-190I-2R

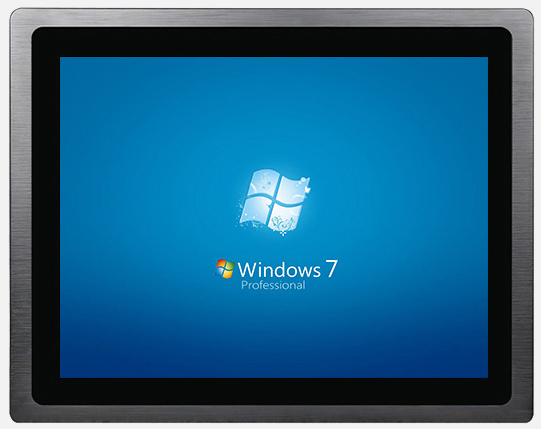

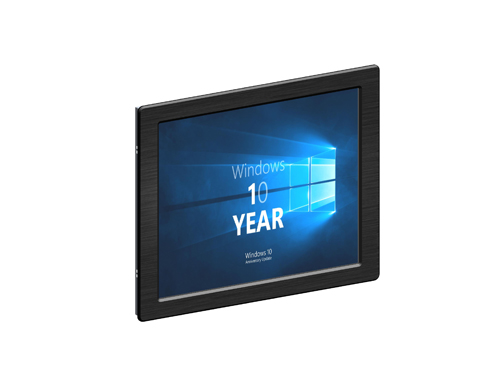

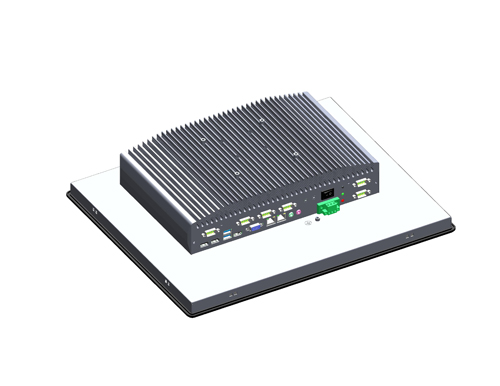

19" LED Fanless Intel 6th,7th,8th,i3,i5,i7 Industrial Panel PC
Features:
  • 19"  LED Panel support 1280 x 1024
  • Intel 6th, 7th, 8th,9th, i3, i5, i7 Processor
  • 2x SODIMM DDR4 2400/2166 SDRAM up to 32 GB
  • Front aluminum bezel with IP65 compliant
  • DC12V input ( option Wide range DC 8-30V input)

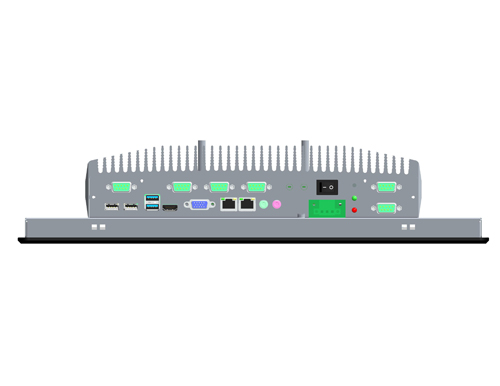

  • 6COM,1xHDMI,1xVGA, 4xUSB, 2xLAN, 1x AUDIO, MIC
  • Quick Download

    Specifications

    Processor: Intel® 6th,7th,8th,9th, i3.i5,i7 Core Processor

    LCD Size: 21.5" LED Panel support 1920 × 1080pixel

    Luminance (cd/m2): 250, Contrast: 1000:1,

    Chipset: Intel ® H310

    Memory: 2 x DDR2 memory expansion slot, the largest support for 32GB

    Hard Disk: 1 x 500GB

    System: Win7, Win8, win10, Linux

    Graphic: Integrated Intel HD graphics chip, support independent dual display,

    LAN: 2 x GbE LAN RJ-45

    Audio: 1 x Audio line out and MIC input

    USB interface: 2 x USB 2.0 port,2 x USB 3.0 port

    Serial port: 1x RS485 DB-9, 5 x RS232 DB-9

    Touch Screen: USB Resistive Touch

    Dimension WxHxD: 456 x 345 x 95 mm

    Net weight (Kgs): 10.5KG

    Power supply: DC 8~30V, 12V/10A power adapter, 3Pin terminal connector

    Environment: Operating temperature (°C) 0~50, Storage temperature (°C) -20~60,

    Certification: CE / FCC class A

    Various applications
